3-Grit Series in One Pass

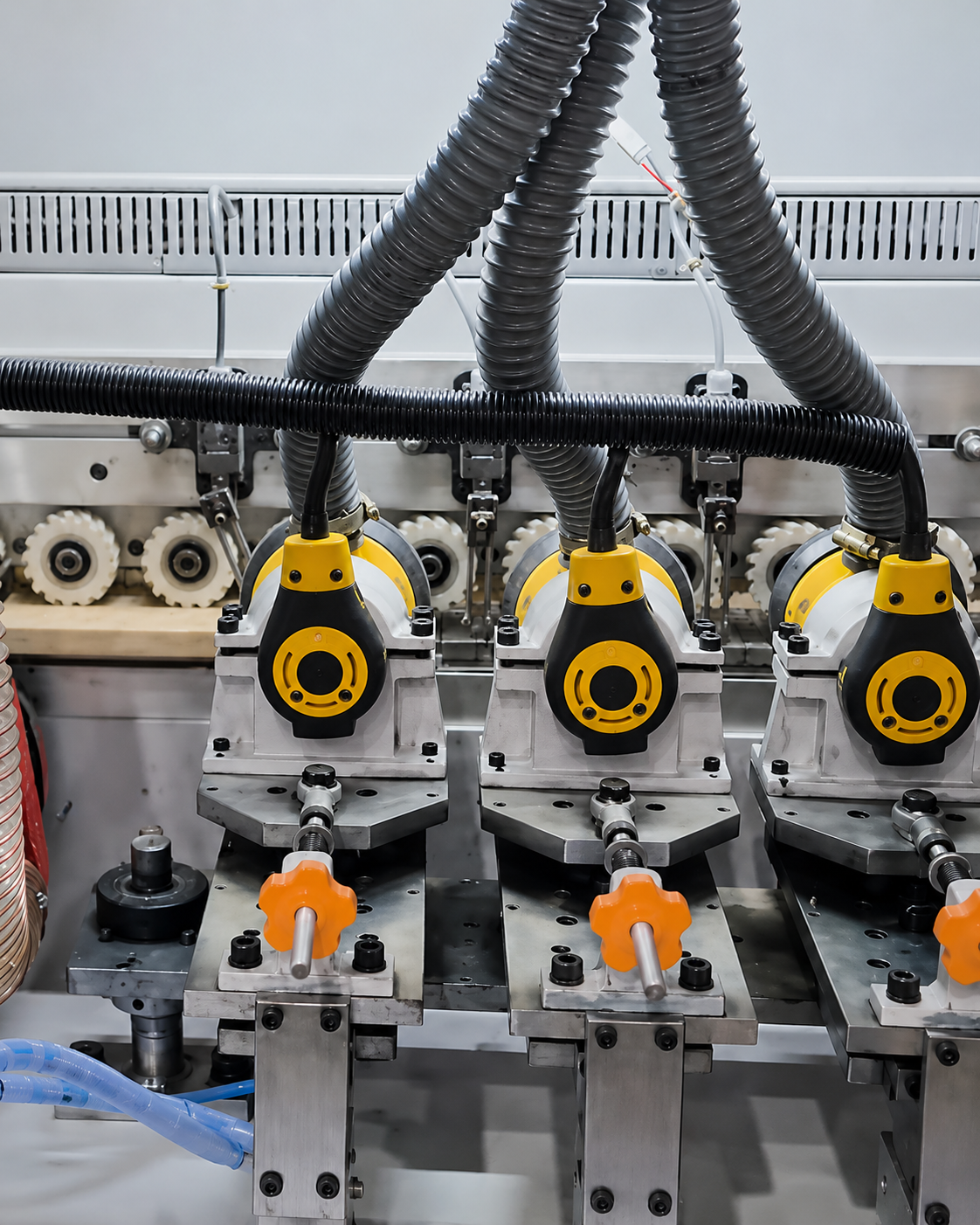

Three 5" orbital sanders are arranged in line to deliver proper grit progression in a single pass.
Dedicated edge-focused sanding platform for profile precision and corner consistency.
Three 5" orbital sanders are arranged in line to deliver proper grit progression in a single pass.
Fits easily into tight shop spaces without demanding extra floor area.
Profile, sand, and corner break in one system, with speed adjustable by door and sanding requirement.
PLC-driven for industrial reliability, with a touchscreen HMI for operator-friendly control.
Profile, edge sanding, and corner breaking are all sensor-controlled, allowing the system to sand at the right moment and at the speed you choose for precise results.

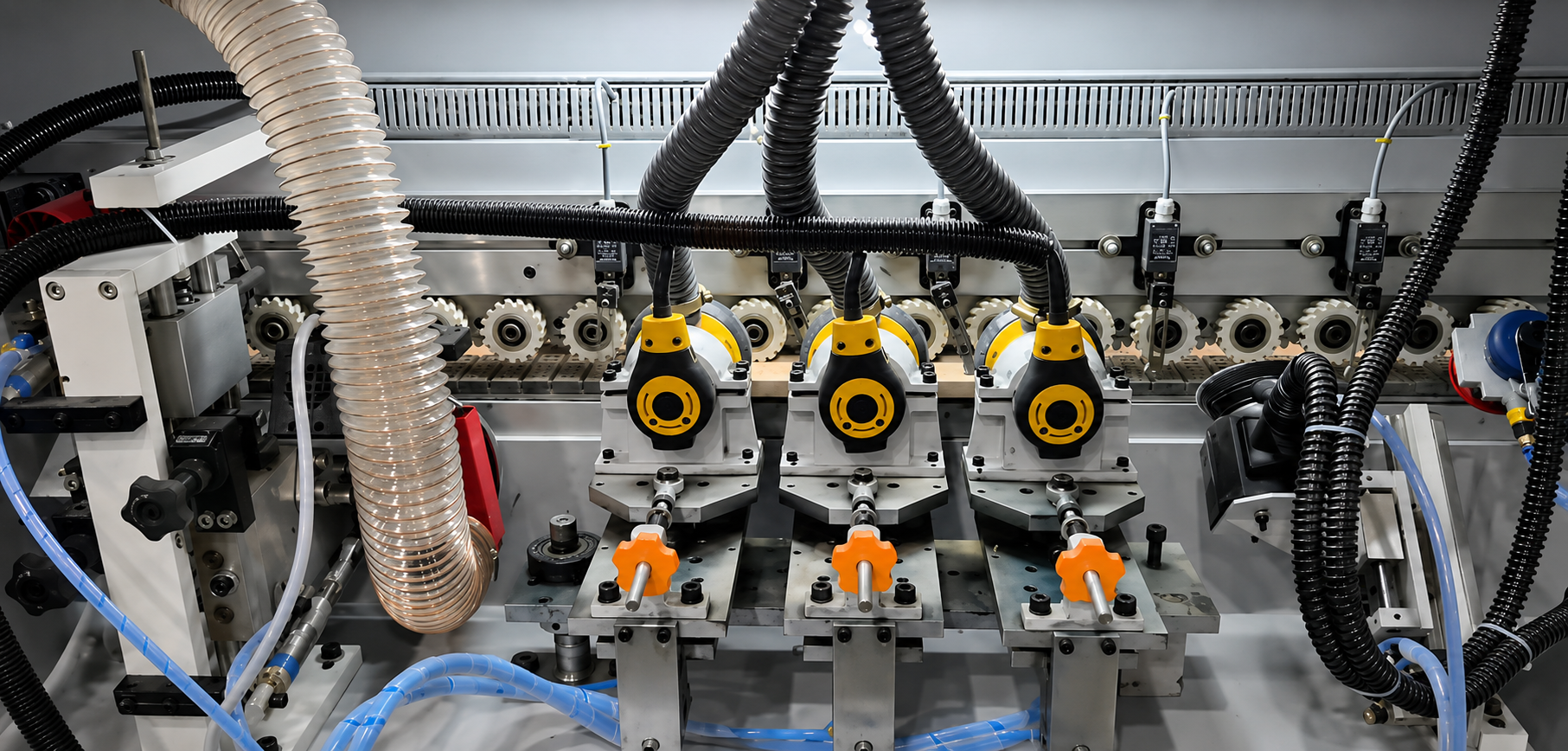

Three 5" sanders combined in one system deliver proper grit progression and a production-ready finish every time.

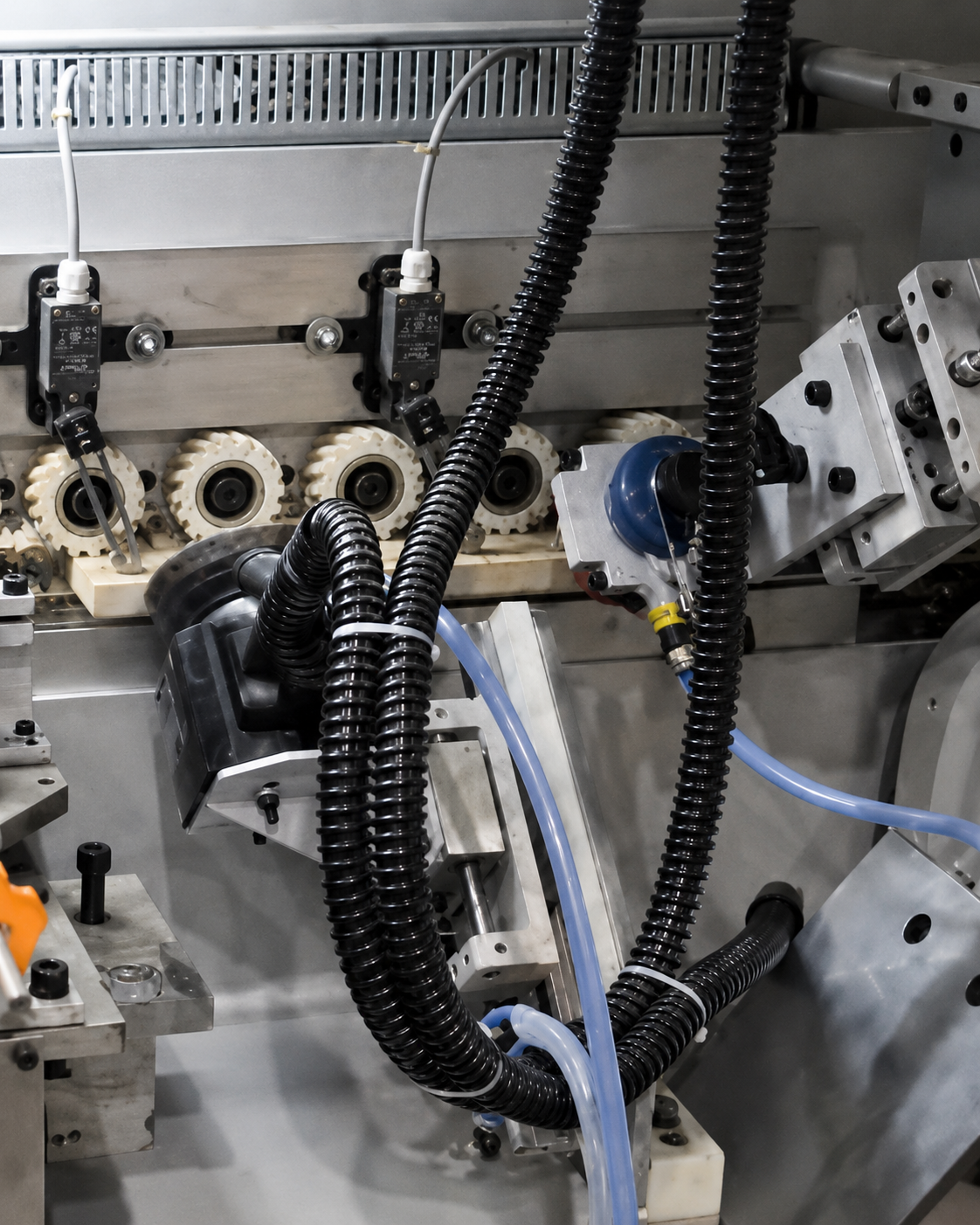

Automatic corner breaking is integrated into the sanding pass using two 3" sanders, so no separate operation is needed.
PLC-driven control provides the industrial reliability you need, while the touchscreen HMI makes operation simple, reliable, and repeatable across every shift.

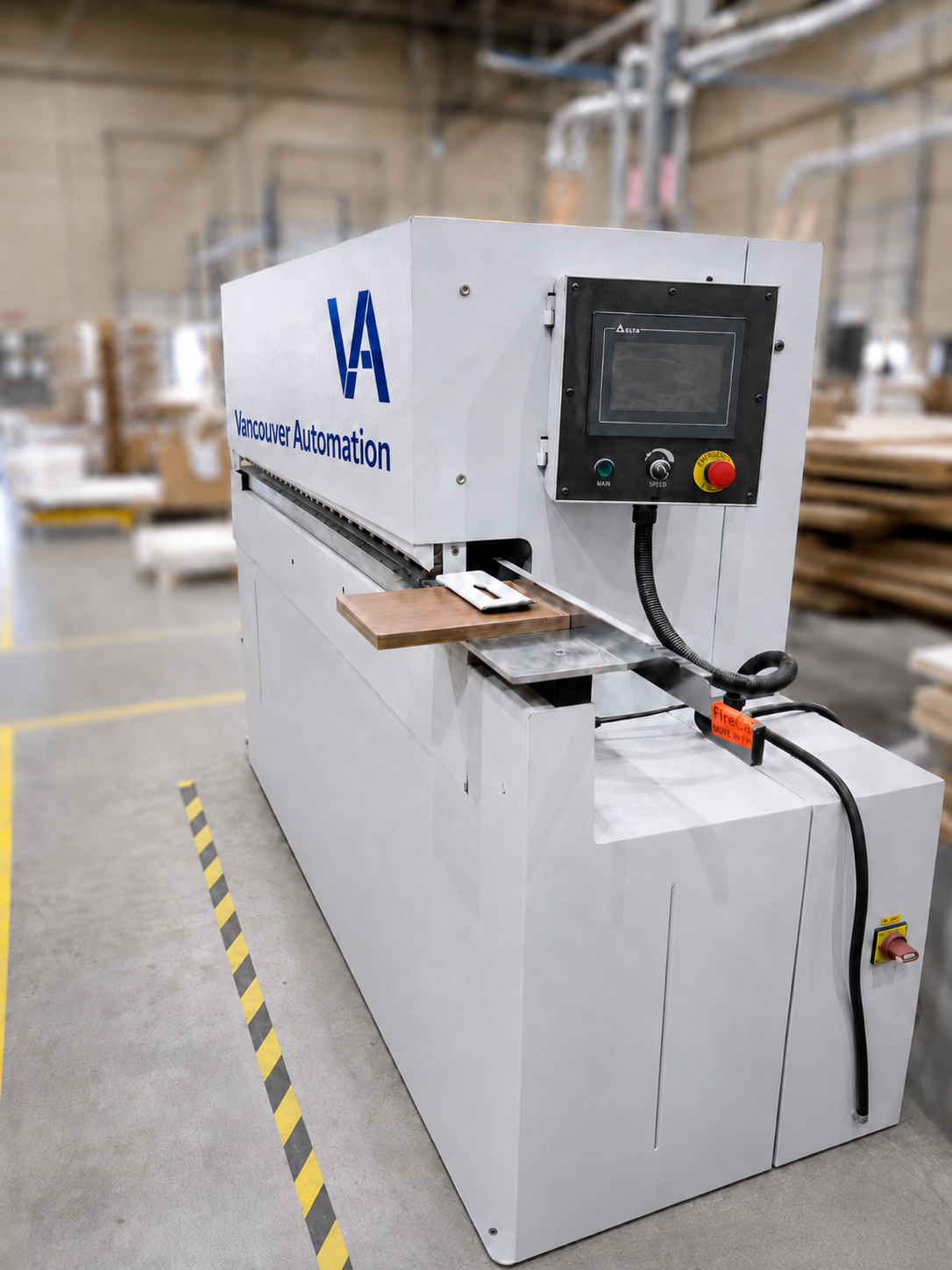

The Edge Sander- Pro takes over the work that would normally keep two or three hand sanders busy on every door run. It routes the profile, applies three stages of orbital edge sanding, and breaks corners on all four sides without requiring the operator to pick up sandpaper. The result is consistent, production-ready sanding from the first door of the shift to the last.
Best For
Handles MDF and solid wood parts, including doors and drawers. It can sand not only raw wood, but also primed edges without sanding through.
01
02
03
04
PLC
Industrial-gradeReliability
Edge Sanders
Air (or) Electric5" Orbit - 3 and 3" Mini - 2
120 - 400
Sandpaper GritRange
Trimmer
Twofor both sides
Dust Extractor
Comes with the machineHEPA Filter
220V - 25A
Single PhasePower
77" L x 30" D x 51" H
Floor SpaceRequired
Designed, engineered and built in Vancouver, BC, Canada.
Industrial-grade components backed by our full 1-year warranty.
Reliable components designed for easy, low-effort maintenance.
Trusted by manufacturers across North America, our intelligent sanding solution delivers precision, consistency, and safety with proven impact on productivity and product quality.
“At the end of the day, it gets the sander out of my hand. The quality turned out to be better than what I could get with a hand sander.”
“VA was an automatic choice with their path to customizability. Their customer support is undeniably the best in the industry.”
“We consistently run upto 12-foot doors, and the robot breaks them into sections and sands them uniformly, even when there are breaks in the middle.”
No special skills required. Operators simply place the door on the table and press start. The AI vision system handles path generation automatically, with no programming or pod alignment needed. Most operators are fully productive after a single training session.
