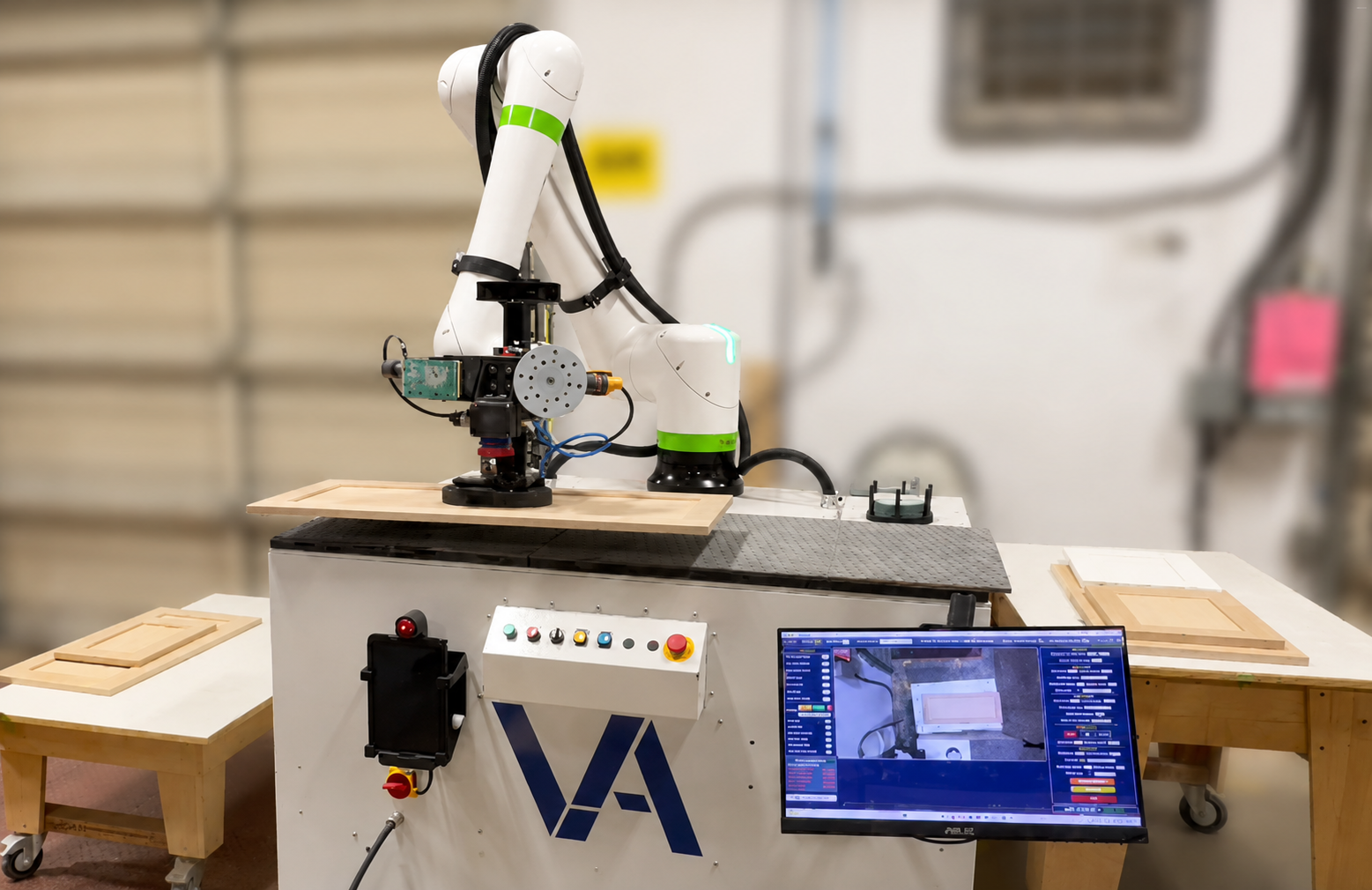

Compact
+300 Doors / 1300 sq.ft per Shift
Well suited for shops producing up to 1300+ ft in a single shift
Compact AI sanding cell for reliable daily output in small and mid-size production lines.
Well suited for shops producing up to 1300+ ft in a single shift
Ideal for small- to medium-sized woodworking and custom shops
Space-constrained shops with a highly affordable investment
Flexible switching between batch & lean flow, and best-in-market for shops using one-piece flow.
0.1 mm Precision
Goes right into those panel corners, with absolute zero margin for error.
Sands It All

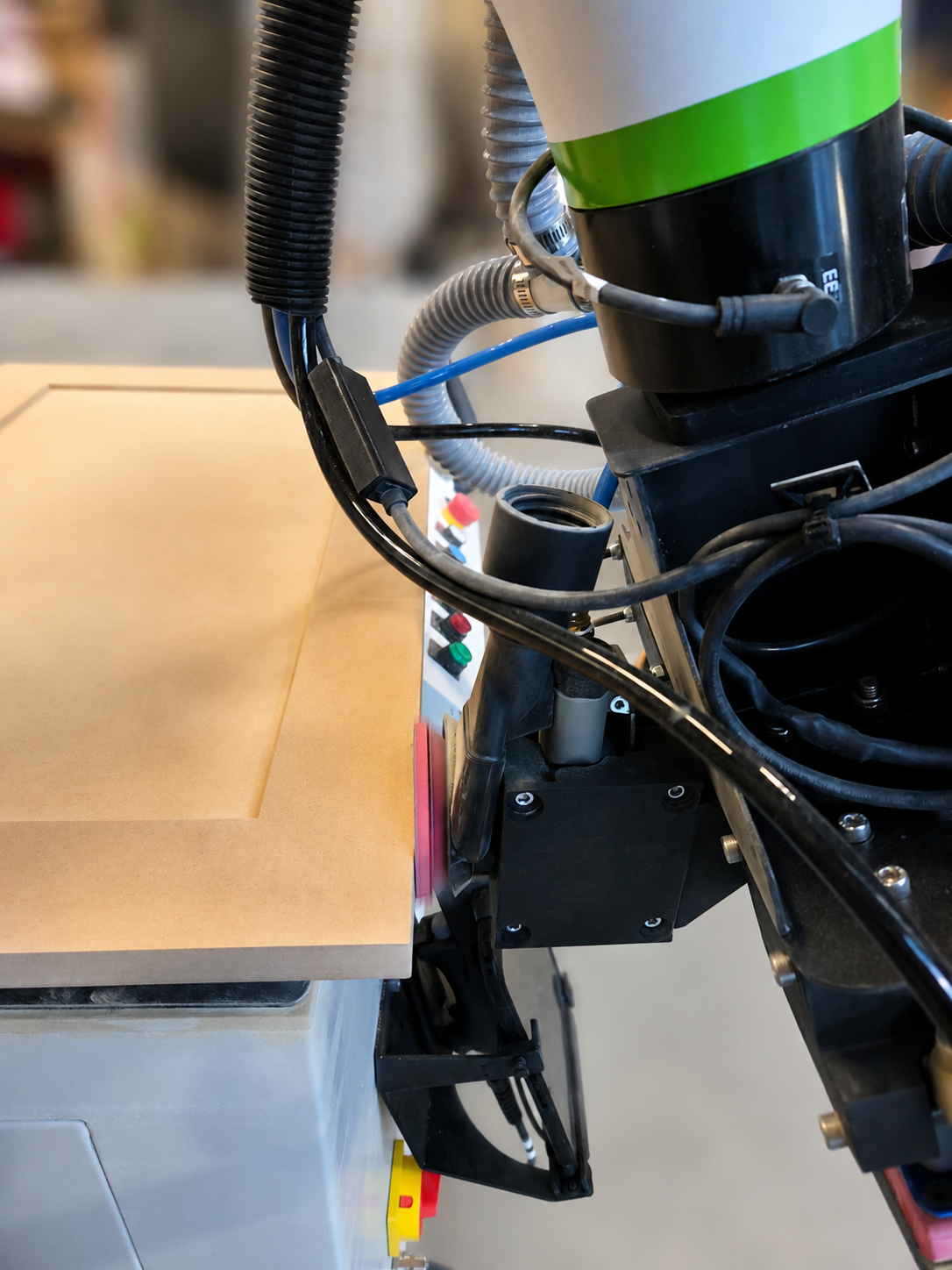

Faces + Edges + Corners in one turnkey cell, all with a press of one button.
Zero Programming

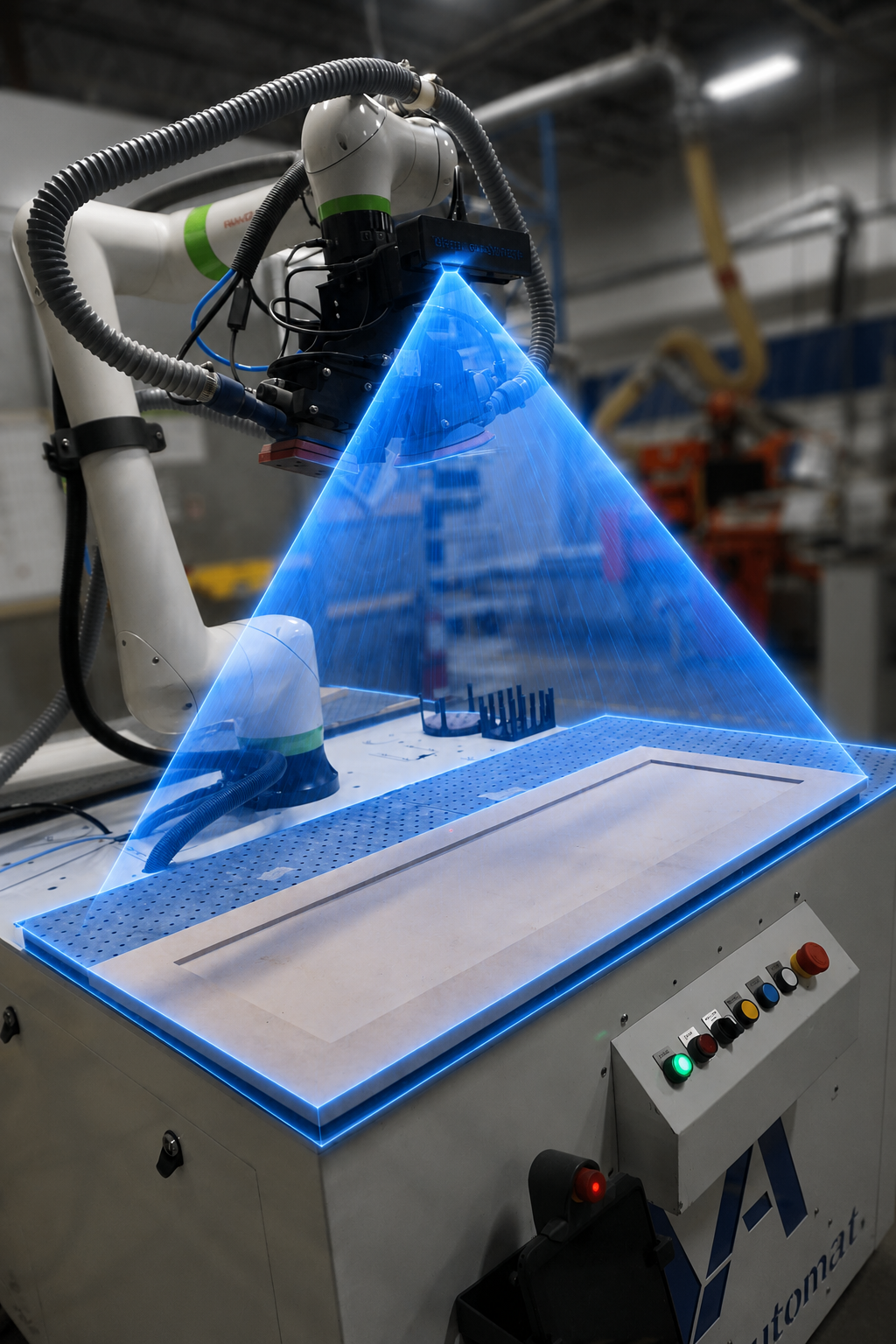

3D vision knows each doors' location, rail width, wood type, thickness, and dimensions.
Consistent Pressure Control
Multi-sanding heads adjust pressure in real time, ensures no burn-throughs or over-sanding.
Your robot gets smarter over time with free over-the-air updates, while the cloud dashboard tracks cycle time, grit wear, and operator touches to help drive continuous improvement, improve process visibility, and optimize production decisions.
A flexible system for your production line needs. Batch flow has no idle time by letting operators load doors while the robot sands the next door, while lean shops using one-piece flow avoids the door-positioning prep required by other turnkey cell in the market.
Built with a collaborative design, the system uses LiDAR scanner protection to safely slow down when operators enter the work area: instead of full stops or error, allowing part loading and unloading alongside the robot without any production interruptions.

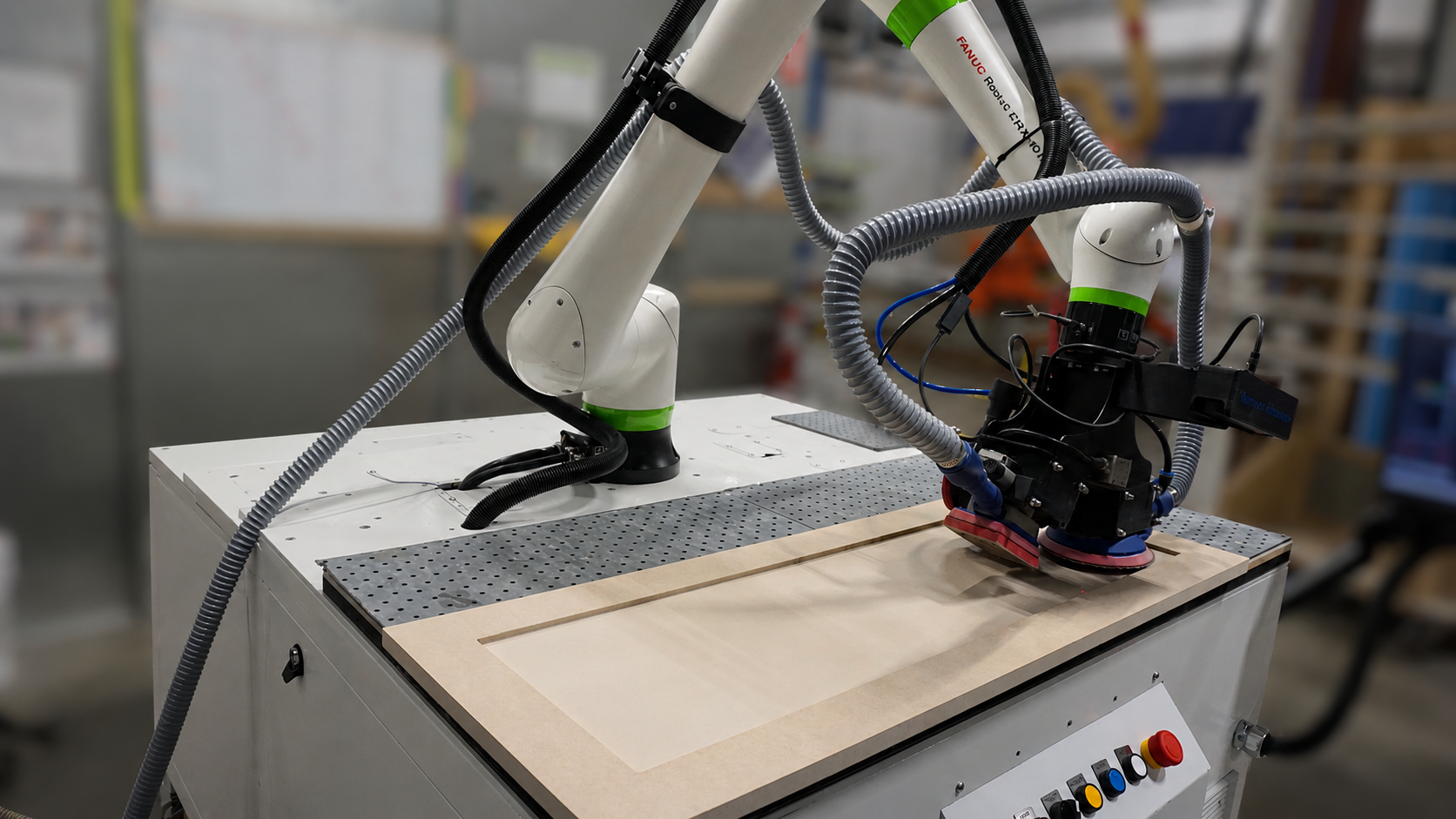

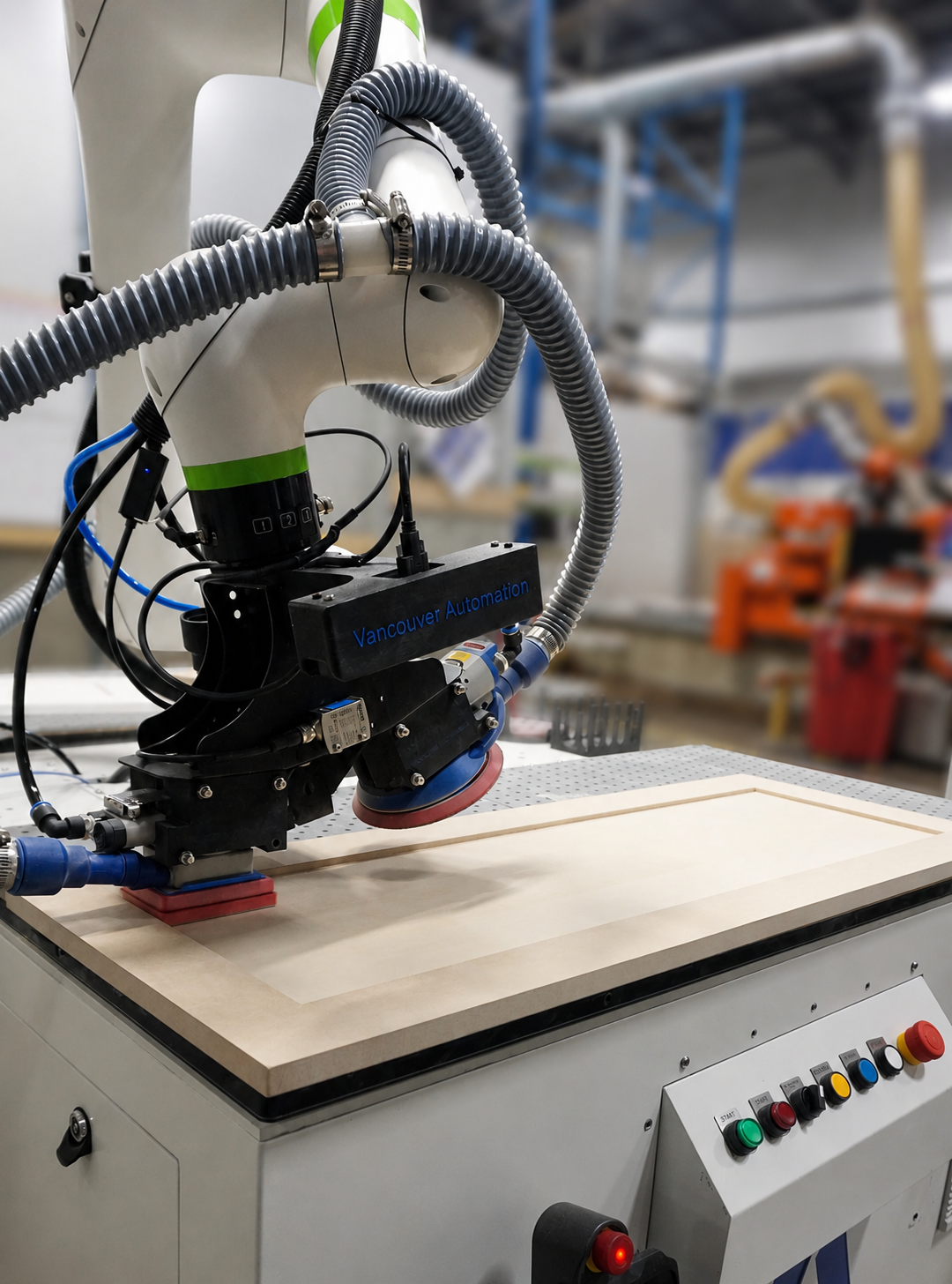

No need to align the door in jigs, fixtures, or pods. Just place it freely on the table, in any angle, and press the green button to start — no programming required.

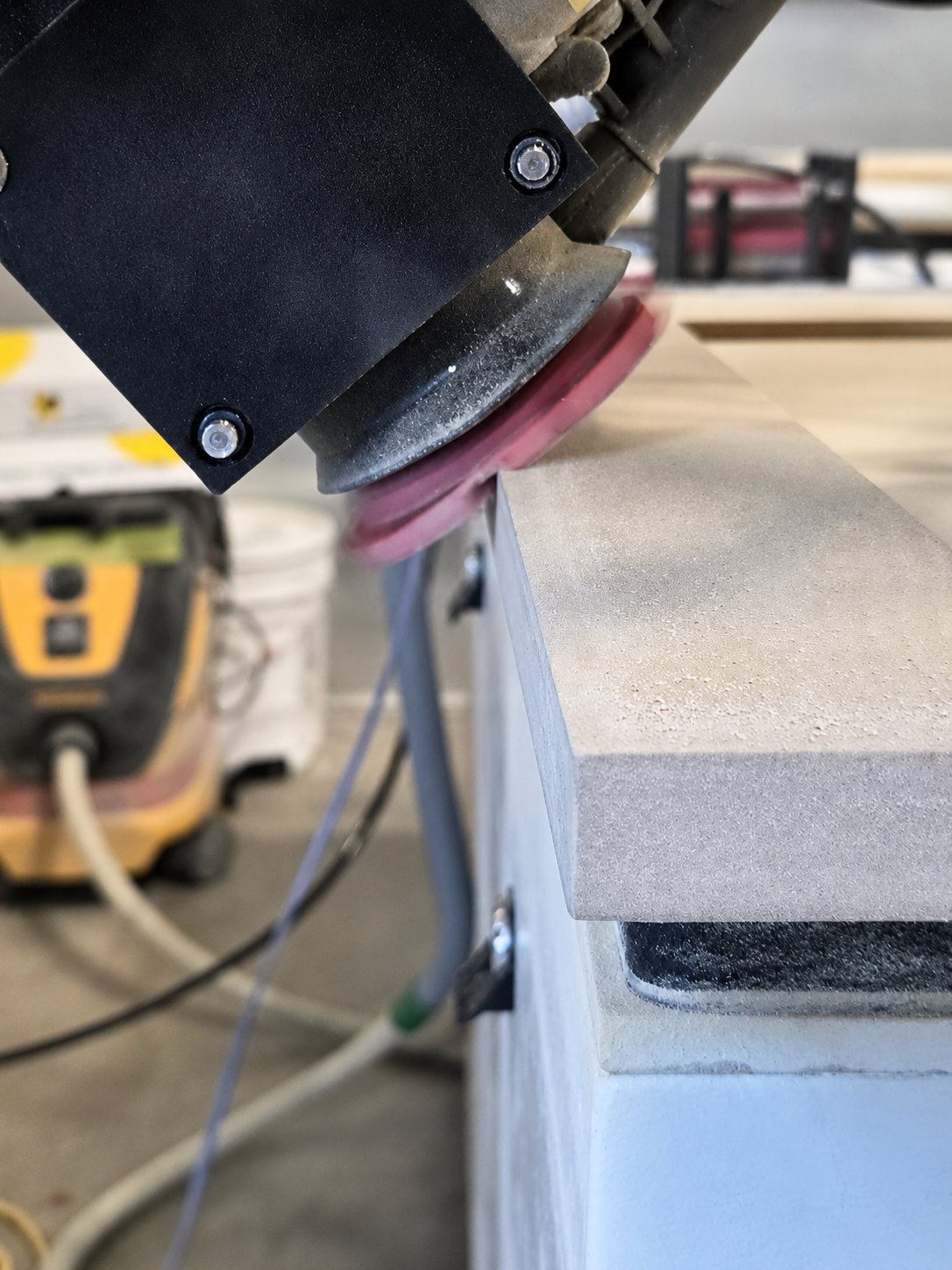

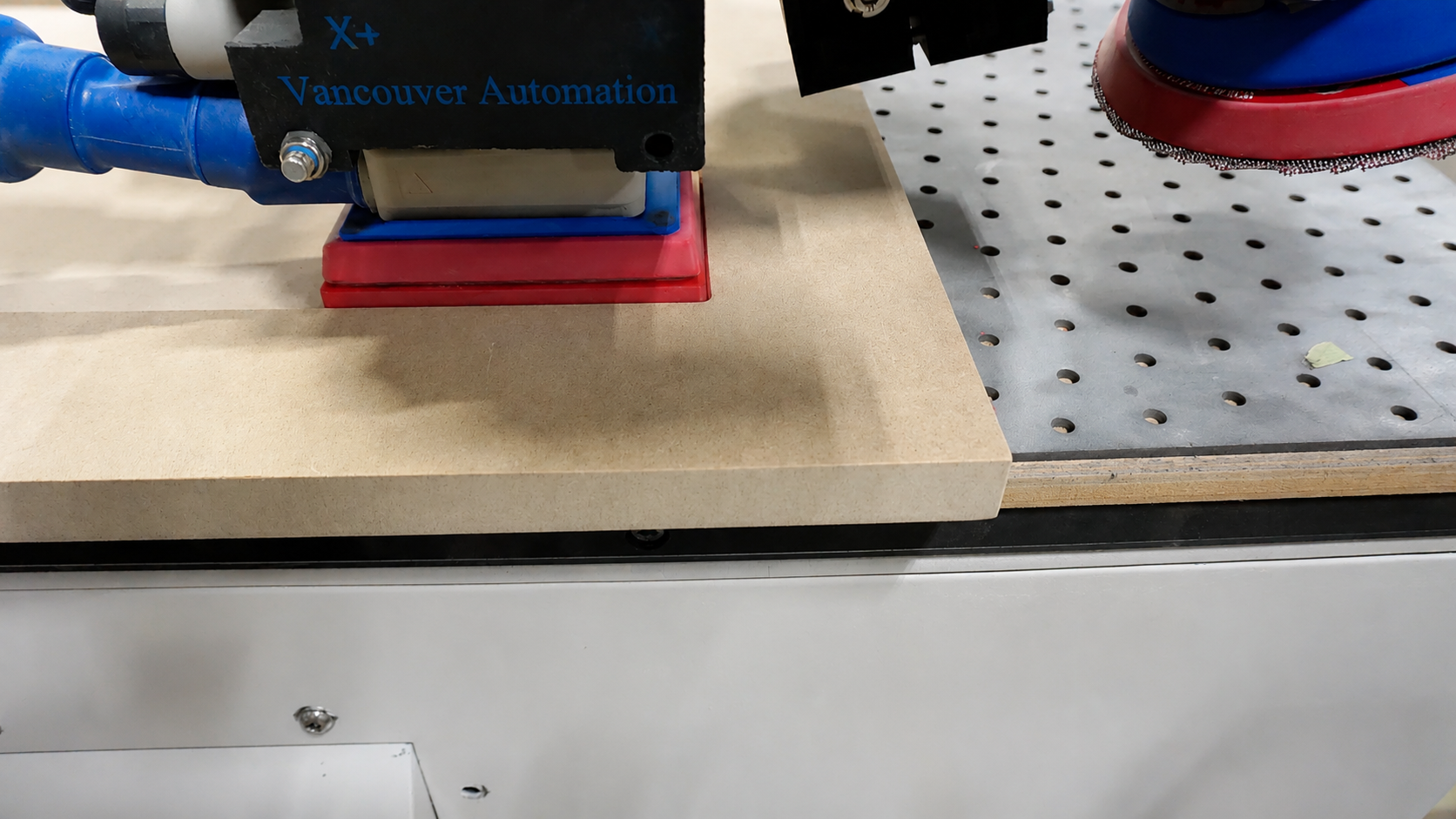

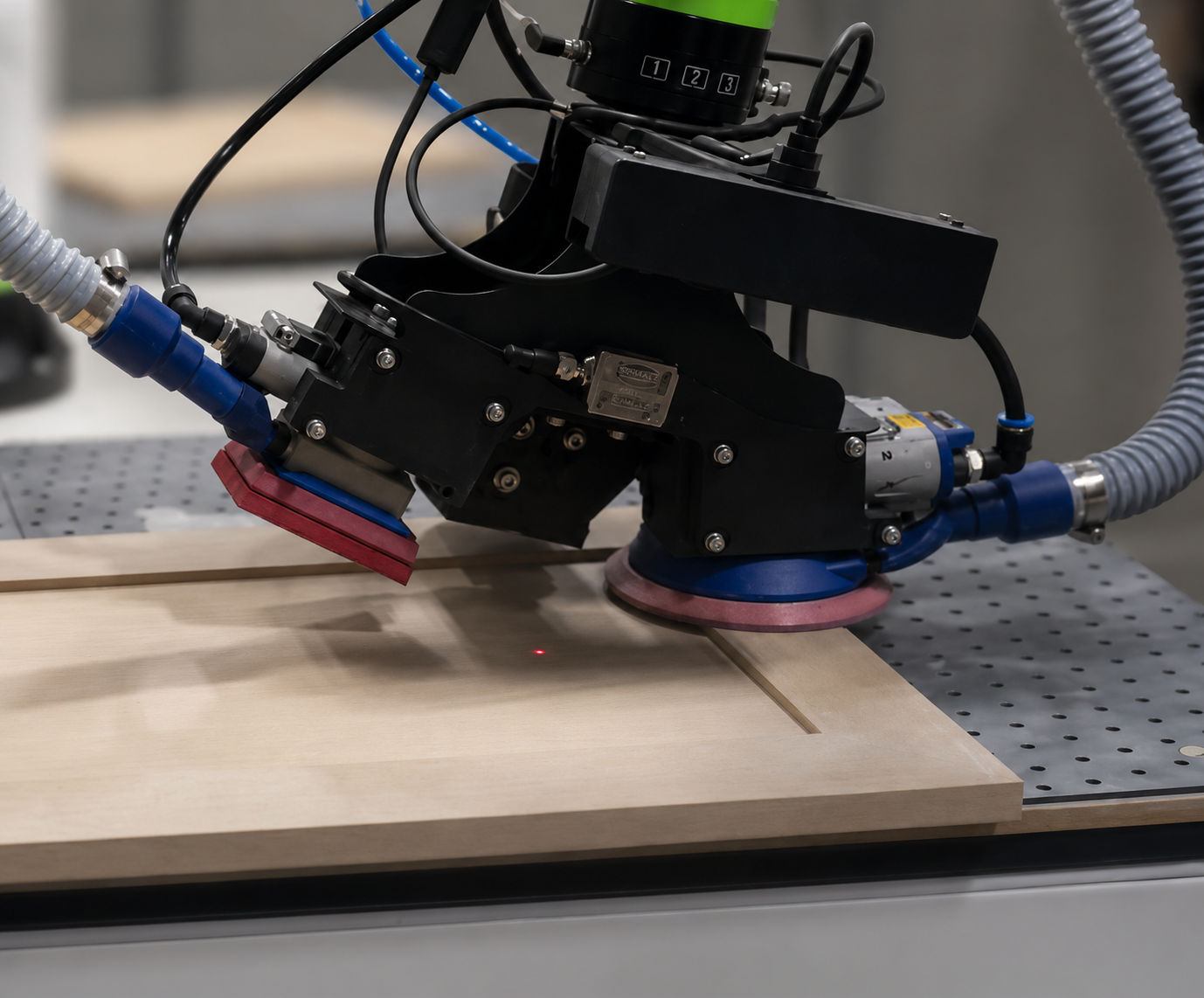

Trio-Sanders sand each part of the door the right way, while multiple sanding patterns deliver a more consistent finish in one complete turnkey cell.

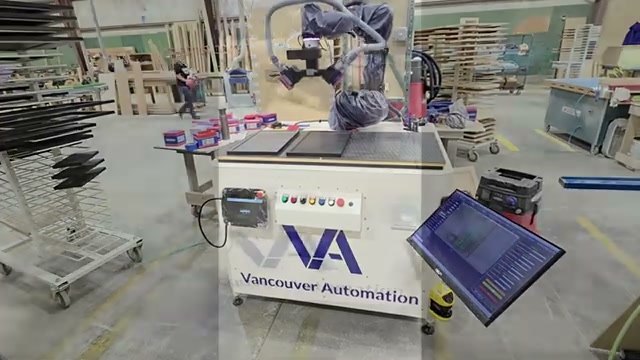

Industrial-grade pressure sensor ensures consistent pressure across wood, MDF, primer, sealer, stains, paints, and veneer without sanding through.
Your robot gets smarter over time with free over-the-air updates, while the cloud dashboard tracks cycle time, grit wear, and operator touches to help drive continuous improvement, improve process visibility, and optimize production decisions.
A flexible system for your production line needs. Batch flow has no idle time by letting operators load doors while the robot sands the next door, while lean shops using one-piece flow avoids the door-positioning prep required by other turnkey cell in the market.
Built with a collaborative design, the system uses LiDAR scanner protection to safely slow down when operators enter the work area: instead of full stops or error, allowing part loading and unloading alongside the robot without any production interruptions.
01
02
03
04The automation system is merely a tool; the operator remains the master craftsman. This platform empowers users to take absolute command of production by customizing exact sanding pressures, choosing specialized tool path patterns, and defining final finish thresholds to match any workshop’s precise standards of perfection.

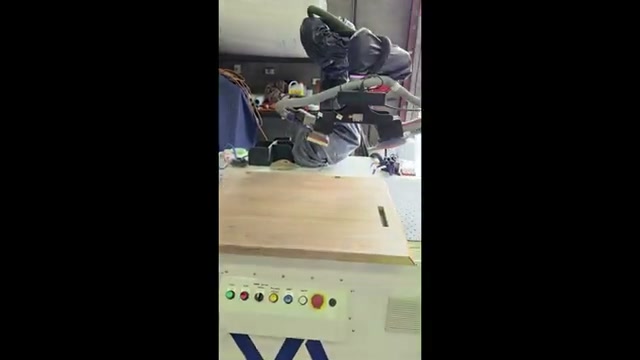

Engineered for consistent, linear execution along the wood grain. Optimized for raw hardwood panel prep and eliminating cross-grain scratches on stiles and rails.
Formulated for precise recessed detailing inside Shaker doors and tight profile joints. Features fully adjustable targeted pressure variables, and customized finish thresholds for deep corner finish.
Engineered to deliver a flawless, uniform finish by erasing trailing sanding lines and linear transition marks. Perfect for blending overlapping flat surfaces to achieve a completely scratch-free surface.

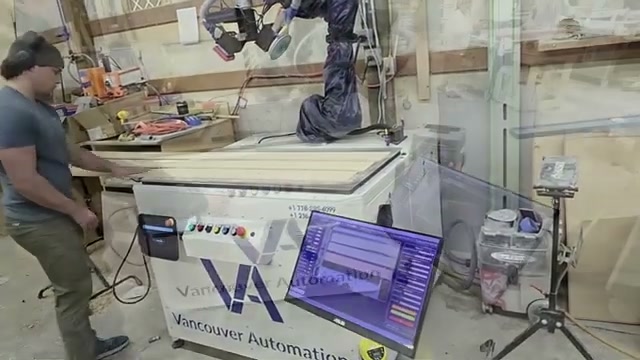

Specially calibrated for delicate undercoats, primers, and MDF sealers. Offers ultra-smooth, continuous motion to prevent surface burn-through while securing an enamel-ready, high-gloss finish.

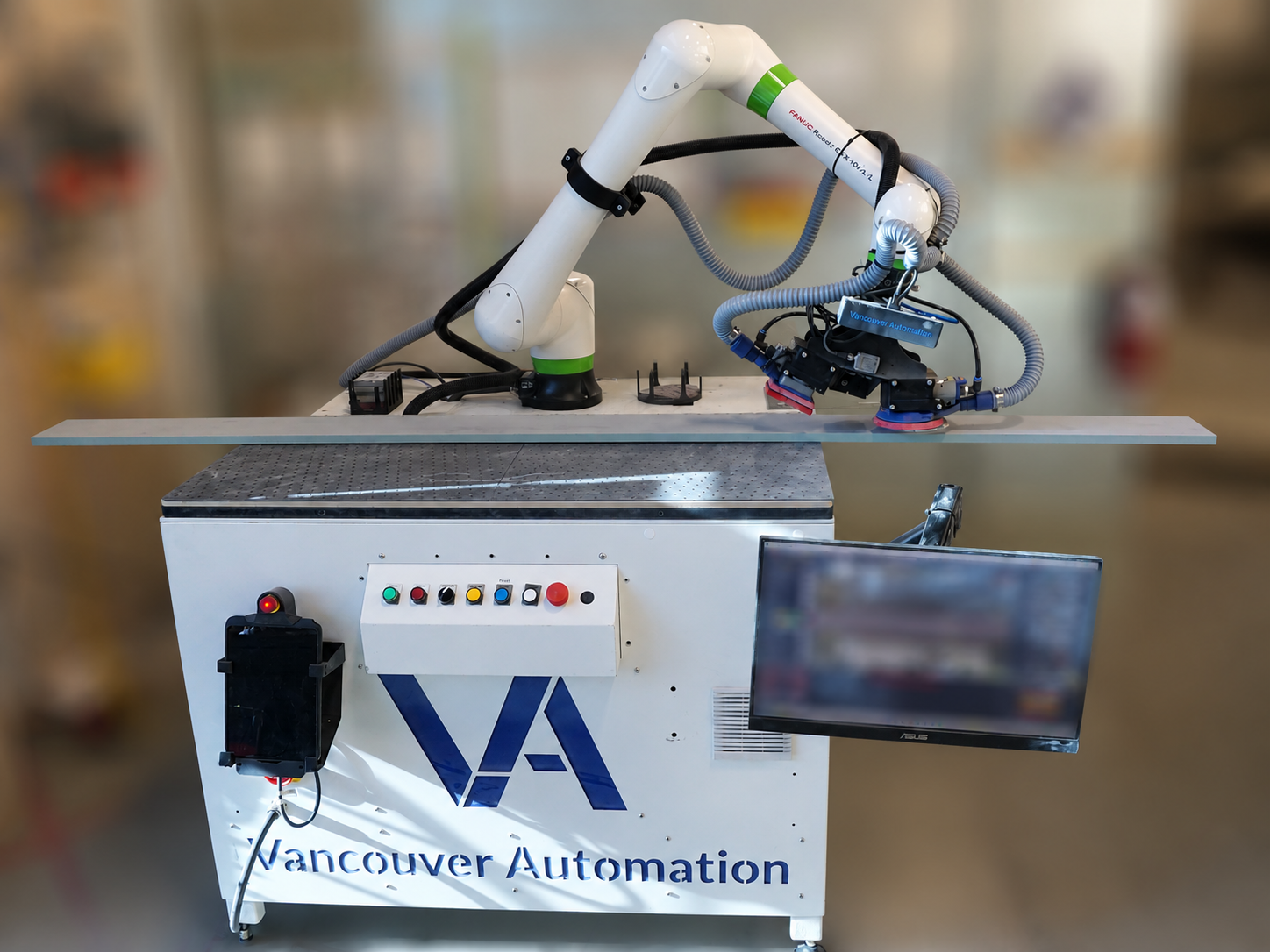

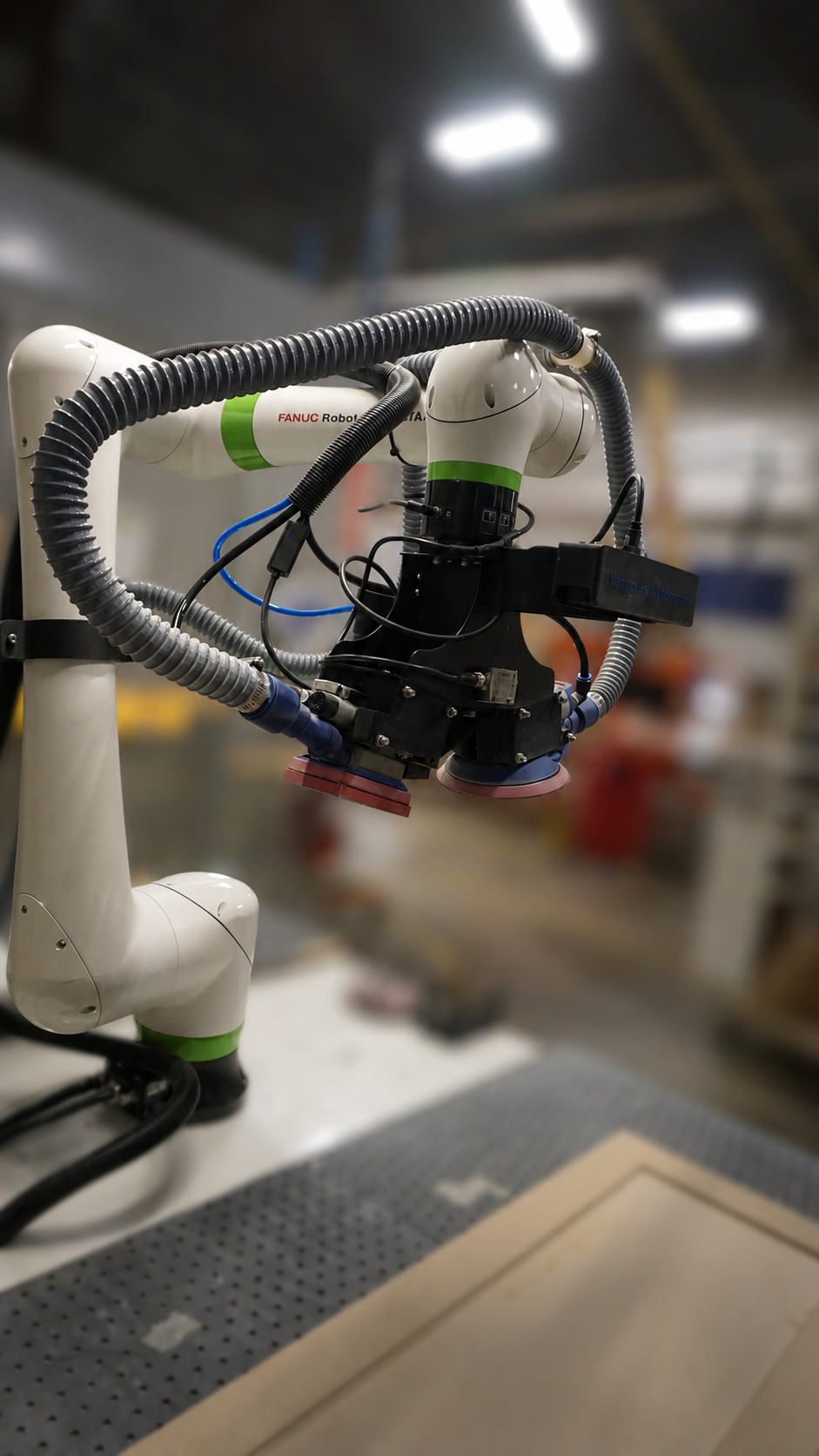

FANUC CRX
Industrial-gradeRobot Arm
TRIO — Sanders
Air (or) Electric(5/6)"—Disc, 3x4"—Pad, 3"—Mini
120 - 400
Sandpaper GritRange
POV - 8
Dust Extractor (8 Gallon)HEPA-M Filter
110V - 30A (or) 220V - 15A
Wall SocketPower
60" W x 53" D x 84" H
Floor SpaceRequired
24" x 60" / 36" x 40"
MaximumDoor Size
UPTO 120"
Max SupportedDoor Length
Designed, engineered and built in Vancouver, BC, Canada.
Industrial-grade components backed by our 18-months warranty.
Proven FANUC reliability with up to 20,000+ maintenance-free hours.
Round-the-clock remote support from our expert team.
Trusted by manufacturers across North America, our intelligent sanding solution delivers precision, consistency, and safety with proven impact on productivity and product quality.
“At the end of the day, it gets the sander out of my hand. The quality turned out to be better than what I could get with a hand sander.”
“VA was an automatic choice with their path to customizability. Their customer support is undeniably the best in the industry.”

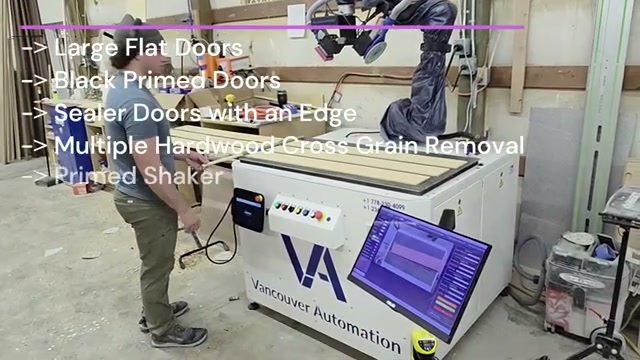

“We consistently run upto 12-foot doors, and the robot breaks them into sections and sands them uniformly, even when there are breaks in the middle.”
No special skills required. Operators simply place the door on the table and press start. The AI vision system handles path generation automatically, with no programming or pod alignment needed. Most operators are fully productive after a single training session.
Core Pick-Sand-Place workflow for automated transfer and controlled sanding consistency.
Learn More

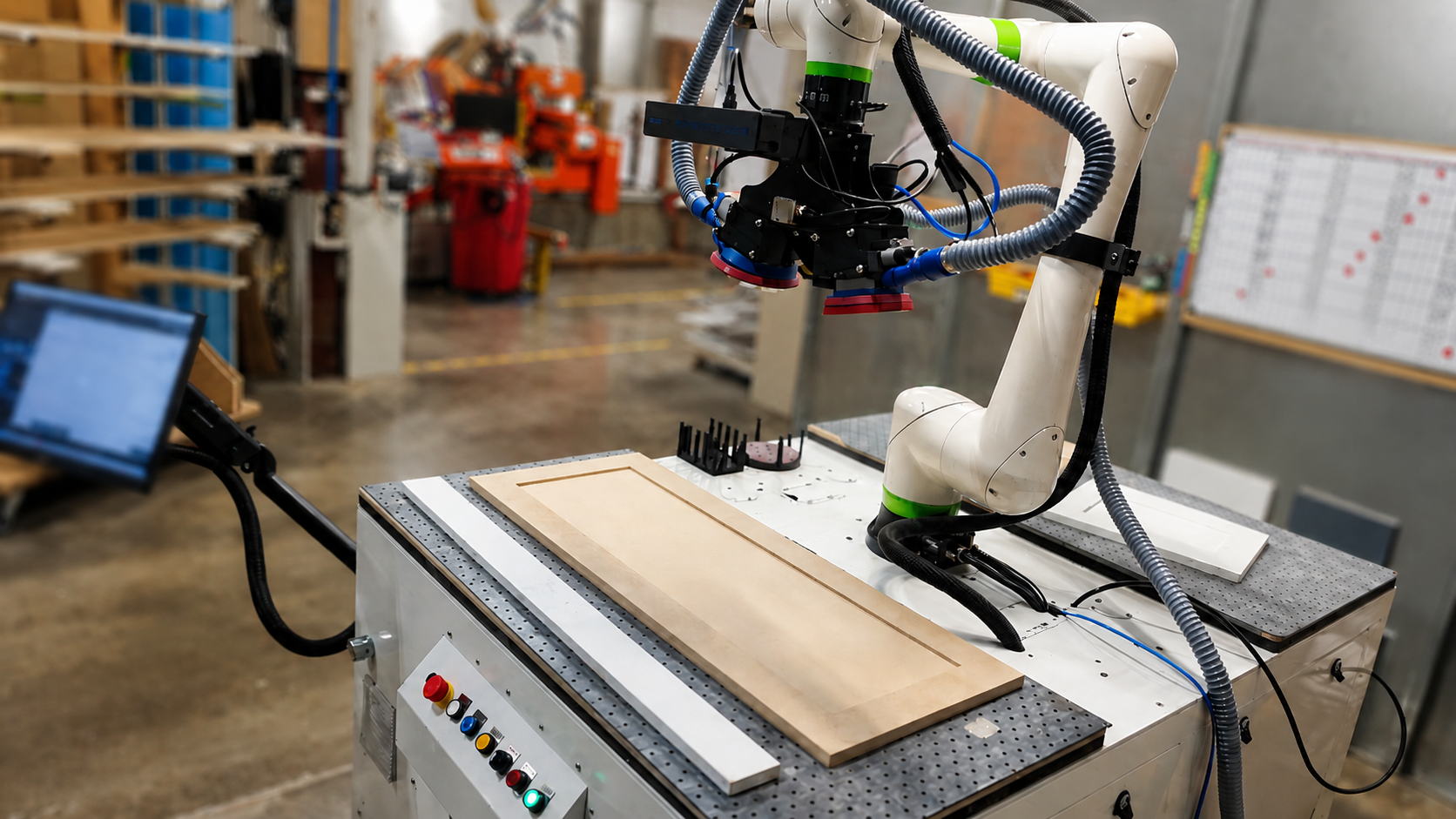

Dual-station setup for parallel sanding, maximizing throughput while reducing headcount.

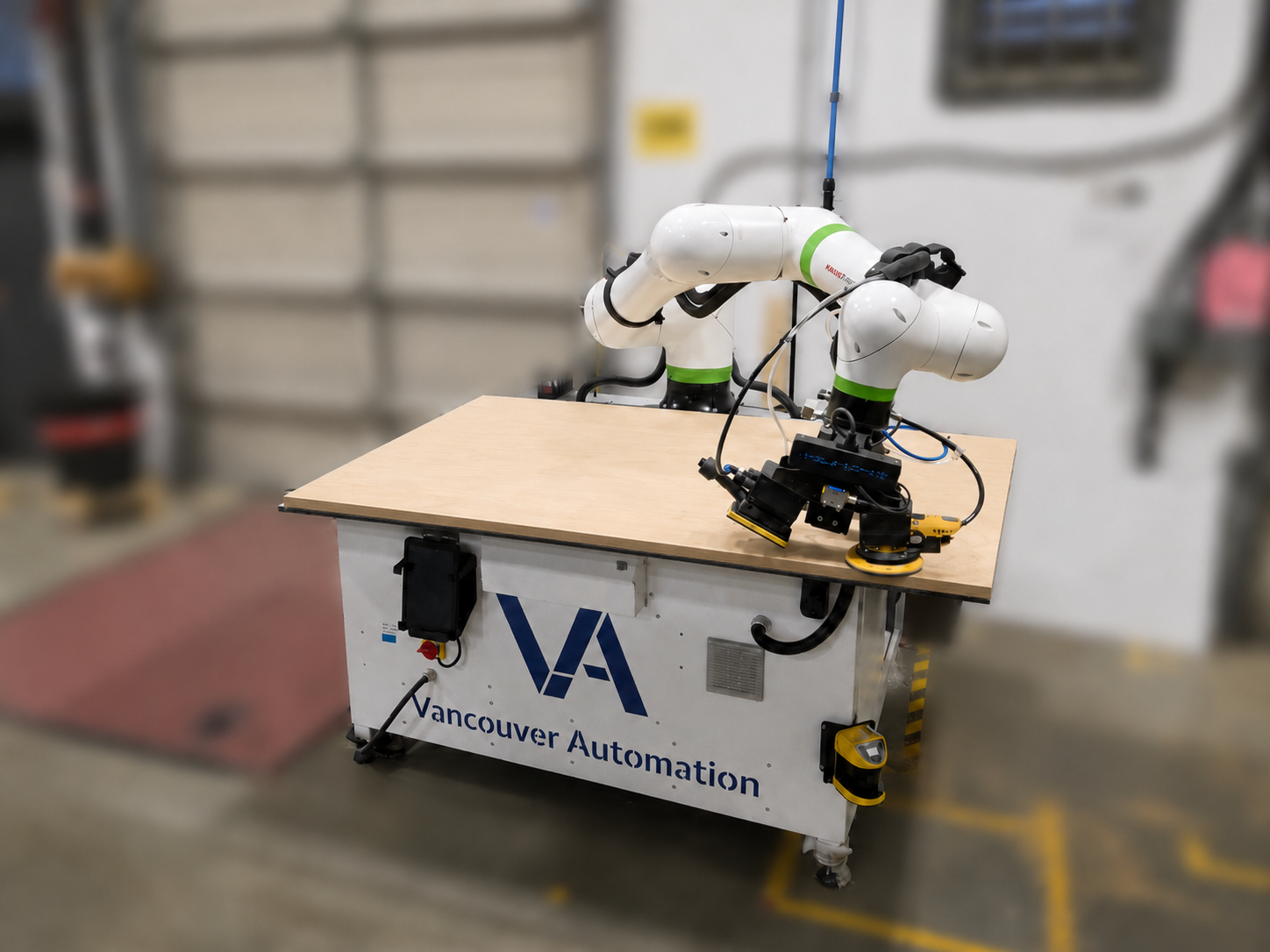

Large Work Range Sanding Platform built to handle larger parts with ease.

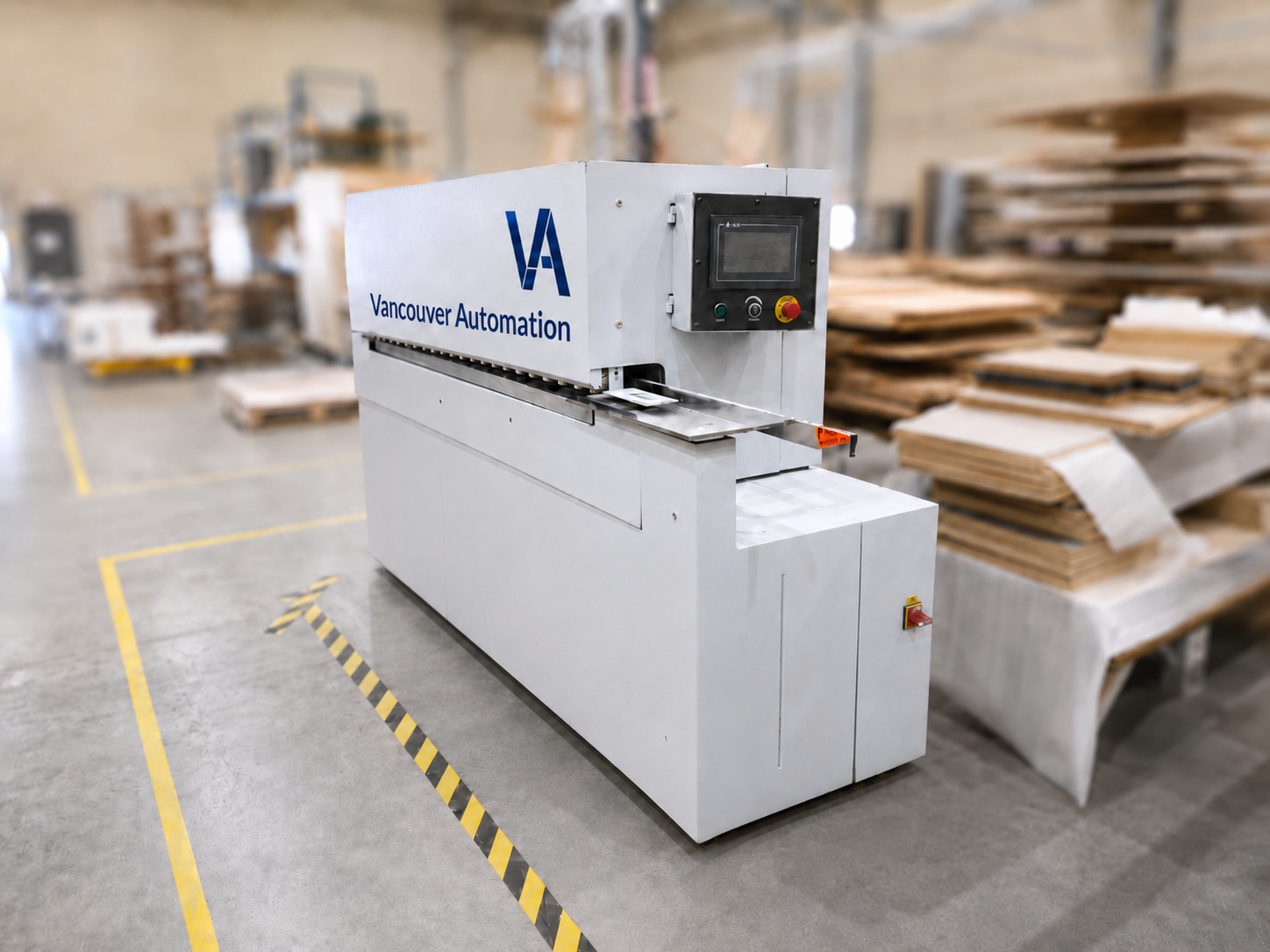

Dedicated edge-focused sanding platform for profile precision and corner consistency.
